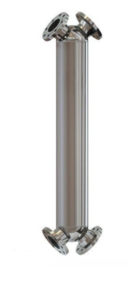

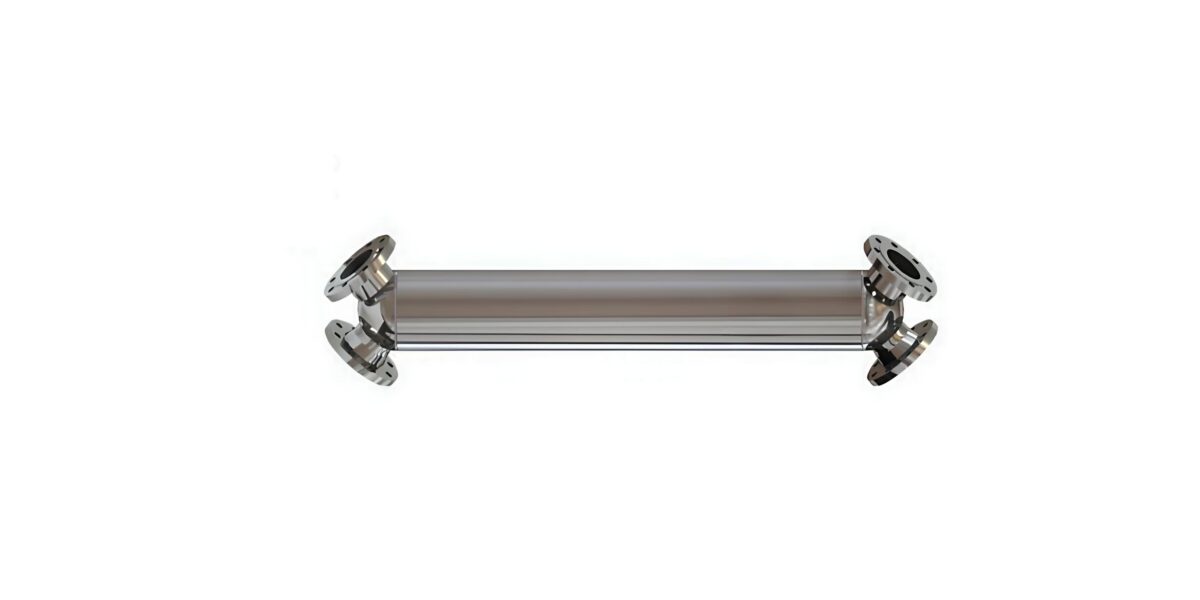

JAD tube heat exchangers

Teplo-Polis LLC, a manufacturer of JAD heat exchangers, is one of the market leaders. It specializes in the manufacture of thermal equipment. The company’s product range includes heat exchangers of various types (including JAD) and individual automated heating stations (IHS). The company’s products are used in a wide variety of areas and industries.
Heat exchangers play a critical role in maintaining stable temperature conditions necessary for the operation of many processes. They provide efficient heat removal and distribution, which helps to avoid overheating of equipment, reduce energy costs, and increase productivity.
The main competitive advantage of JAD tubular heat exchangers is a unique combination of design, high-quality materials and innovative engineering solutions that ensures high thermal efficiency and long service life.

What are JAD tube heat exchangers?

JAD tube heat exchangers are highly efficient devices for heat exchange between two agents, widely used in industry and heating systems. These shell-and-tube heat exchangers consist of a shell and tube bundle placed inside it.
The basic idea of a shell-and-tube heat exchanger is that one of the heat transfer agents moves inside the tubes, while the heat receiving agent passes through the space between the tubes and the shell. This approach creates optimal conditions for efficient heat transfer.

Description of the design of tubular heat exchangers

The JAD tube heat exchanger consists of several key components:

• Casing is the outer casing that houses the pipe bundle that circulates the cooling or heating medium.
• A tube bundle is a set of tubes that can be spiral or straight, depending on the model.
• Flange connections or welded connections are the elements that allow the heat exchanger to be connected to the system.

The design of JAD shell-and-tube heat exchangers also includes the use of brazing, which increases the tightness and durability of the device.

How does the JAD tube heat exchanger work?

The principle of operation of the JAD tube heat exchanger is the circulation of two heat transfer fluids: one flows through the tubes and the other through the intertube space inside the shell. This creates an intense heat exchange between the agents, where one of them is heated and the other is cooled.
JAD models have design features that ensure reliable operation even at high pressures (up to 35 atm) and temperatures (up to +250°C). Depending on the requirements, they can be equipped with various types of connections, including flanged and threaded.

Unique features of JAD models

JAD tube heat exchangers have a number of unique features that make them attractive for a wide range of industrial and commercial applications:
All JAD heat exchangers are made of high quality stainless steel, which guarantees high corrosion resistance and durability.
The heat exchangers are available in a variety of designs that can be adapted to the needs of a particular process. The JAD X model, for example, features an X-shaped nozzle arrangement that reduces pressure loss at high flow rates and makes it resistant to erosion.
JAD K models use corrugated tubes that increase flow turbulence, which improves heat transfer.

Due to their characteristics, JAD tube heat exchangers are often used in heating and cooling systems and in thermal units.

Advantages of JAD tube heat exchangers

JAD tube heat exchangers stand out for their high heat transfer coefficient, which is significantly higher than that of standard shell-and-tube heat exchangers.

One of the important advantages of JAD heat exchangers is their compact size with a large surface area for heat transfer. They take up less space than many conventional systems, which is particularly valuable in industrial facilities and technical rooms. An additional advantage is that they can be installed in a vertical position.

Cost and payback of JAD tube heat exchangers

JAD heat exchangers are a good combination of price and quality in the industrial equipment market. Their cost is justified by the high level of reliability and durability due to the use of stainless steel.

JAD heat exchangers are characterized by high energy efficiency due to their sophisticated design. The fast reaching of the required temperatures allows you to save on energy costs. This, combined with the low maintenance investment due to their corrosion and wear resistance, reduces overall operating costs.

The payback period for such heat exchangers is significantly reduced due to these advantages. As a result, the initial investment is quickly offset by energy and maintenance savings, making JAD tube heat exchangers a profitable investment for companies looking to optimize their production processes.

Warranties and technical support from JAD

The manufacturer provides JAD tube heat exchangers with a warranty that covers all possible defects related to materials and manufacturing processes. This allows customers to be confident in the quality and reliability of the equipment.

JAD offers flexible service programs that allow customers to receive regular technical support. This includes preventive maintenance, inspection and cleaning of heat exchangers. Thanks to a well-thought-out service program, JAD equipment maintains its performance throughout its entire service life.

Customer support at all stages of operation

We support our customers at every stage – from model selection to after-sales service. This includes consultation at the selection stage, installation assistance, equipment setup, and staff training. In case of technical issues, we provide prompt support. Customers can count on the professional assistance of the company’s specialists, which makes the use of the equipment as convenient and safe as possible.

Main applications of JAD tube heat exchangers

In the energy sector, JAD tube heat exchangers are used for heat exchange processes in power generation and fuel processing plants. Their high thermal efficiency and ability to operate at high pressures make them an ideal choice for use in cooling systems for generators and boiler equipment.

JAD heat exchangers are in demand in the chemical and petrochemical industries, where they are required for safe and efficient heat transfer at high temperatures and pressures.

In the food industry, JAD tubular heat exchangers are used in bulk washing equipment to heat the washing solution, pasteurize, cool and heat liquids. Their design meets stringent safety and hygiene standards, and their compact size allows them to be installed in small production facilities as steam heaters.

JAD heat exchangers play an important role in heating, ventilation and air conditioning (HVAC) systems, providing energy-efficient heat exchange between outdoor and indoor air, as well as in hot water systems. Due to their versatility, reliability and high-efficiency design, JAD tube heat exchangers are used in many industries, making them an excellent choice for companies focused on performance and quality.

Models of tubular heat exchangers JAD

JAD X series: Models for high temperature applications

The JAD X series of tubular heat exchangers is designed to meet high temperature conditions and increased requirements for reliability and pressure resistance. These models are widely used in production processes that require efficient and stable heat transfer in aggressive environments. Thanks to the use of stainless steel and a special “X” shaped nozzle design, JAD X heat exchangers provide high resistance to erosion caused by contaminated heat transfer fluids and minimal pressure loss even at high flow rates.

Features of JAD X models for high temperature applications

The JAD X series models are characterized by a sophisticated design that allows them to be used effectively in conditions where temperatures can reach 250°C and pressures up to 35 atm. Special “X”-shaped nozzles ensure lower pressure losses at high flow rates. Another advantage of the series is the possibility of complete cleaning using gravity.

Technical characteristics

The JAD X series is represented by a wide range of models that differ in heat exchange surface area and pipe diameter, which allows you to choose the optimal solution for your specific needs. For example, JAD X models include devices with heat exchange areas ranging from 1.15 to 58.4 m², which allows them to be used for different volumes and heat transfer intensities.

JAD Eco series

The JAD Eco series of tube heat exchangers is designed for commercial enterprises, providing high heat transfer efficiency at low operating costs.

Unique features:

• High thermal efficiency reduces energy consumption.
• Space saving and easy installation.
• Easy access for inspection and repair.
• Made of stainless steel for increased durability.
• Suitable for use with a variety of heat transfer fluids and over a wide temperature range.

Advantages:

• High efficiency and low maintenance costs.
• Easy integration into existing heating and air conditioning systems.
• Reduced carbon emissions thanks to energy-efficient technologies.

The JAD Eco series is the ideal solution for commercial enterprises looking to optimize costs and increase heat transfer efficiency.

JAD tube heat exchangers in Ukraine are the perfect choice for your business due to their high efficiency and reliability. They provide excellent heat transfer and durability, which allows you to optimize heat transfer processes and reduce operating costs. Specially designed for different industries, they guarantee reliable operation even in harsh environments. Contact us for a consultation or order and find out how JAD can improve your processes!
