The brazed plate heat exchanger facilitates highly efficient transfer of thermal energy between gaseous, liquid, and vapor mediums.
Design and principle of operation of brazed plate heat exchanger
The brazed plate heat exchanger belongs to the surface heat exchangers, where heat transfer between media occurs without mixing through separating surfaces – solid walls. The main element of the brazed plate heat exchanger is corrugated plates made of thin stainless steel sheets. The plates are brazed together using copper or nickel solder in a vacuum furnace. Solder – a thin (foil-like) sheet of nickel or copper (similar in size to the heat exchanger plate) is placed between each plate. During the assembly of the plate pack (before soldering in the furnace), each subsequent plate is rotated by 180° relative to the previous one.The solder melts in the vacuum furnace, forming a strong bond throughout the plate pack. As a result, channels are formed inside the brazed heat exchanger, through which the participating media will alternately flow for heat exchange.
The movement of media usually occurs in counterflow, i.e., towards each other. The brazed plate heat exchanger can operate at temperatures ranging from -195°C to +230°C and pressures up to 4.5 MPa. As a result, the brazed plate heat exchanger is used in heating systems, chemical production, refrigeration equipment, as well as in technological processes with high temperatures and pressures.
The corrugated surfaces of the plates in the brazed plate heat exchanger have high characteristics that promote significant flow turbulence, which determines high heat transfer efficiency even at low flow rates inside the heat exchanger channels. The turbulent flow of fluids leads to a self-cleaning effect of the plates inside the brazed heat exchanger.
The principle of operation of the brazed plate heat exchanger is similar to that of the gasketed plate heat exchanger. To achieve counterflow, it is necessary to direct the fluids into different ports relative to the horizontal axis of the heat exchanger. For example, if we direct the cooled fluid into the upper right port of the heat exchanger, then the heated fluid should enter the lower left port.
When using the brazed plate heat exchanger as a steam heater, it is necessary to introduce steam into any upper port. When using the brazed plate heat exchanger as a refrigerant evaporator, it is necessary to introduce the liquid refrigerant into the lower port of the heat exchanger.
The brazed plate heat exchanger is cost-effective because its construction is based on heat transfer plates. It does not include expensive pressure plates like in the gasketed plate heat exchanger.
The brazed plate heat exchanger is non-disassemblable, therefore cleaning of the heat exchange surfaces is carried out solely through chemical flushing.

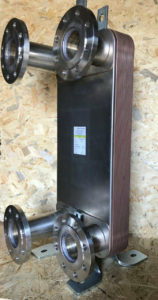

The connections in the brazed plate heat exchanger can be threaded (1″, 1 ¼”, 2″), soldered, and flanged connections for diameters DN50, DN80, and DN100.
Characteristics and Advantages of Brazed Plate Heat Exchanger:
Brazed plate heat exchangers are a high-tech solution for reliability, efficiency and durability in heat exchange systems. Their design features and materials make this equipment indispensable in a wide variety of industries.
Key characteristics of brazed plate heat exchangers:
- High reliability, stemming from the structural features and advanced manufacturing technologies of the brazed plate heat exchanger;
- High thermal exchange efficiency of the brazed plate heat exchanger;
- Wide range of operating temperatures (-195°C to +230°C);
- High working pressure (up to 45 bar);
- High corrosion resistance (plate material – stainless steel AISI316);
- Compactness and low weight of the plate heat exchanger (the basis of the brazed plate heat exchanger’s design is the heat transfer plates);
- Small internal volume (minimal heat losses even without insulation);
- Wide range of capacities and dimensions of brazed plate heat exchangers;
- Easy installation and maintenance of the brazed plate heat exchanger;
- Low cost of the brazed plate heat exchanger;
- The brazed plate heat exchanger is easily installed in a boiler due to its excellent characteristics (small dimensions and high efficiency).
Brazed plate heat exchangers offer the best combination of cost, quality and versatility, making them a popular choice for a variety of heat transfer applications.
Applications of the brazed plate heat exchanger
Brazed plate heat exchangers are widely used due to their versatility, reliability and ability to operate in a variety of conditions. Their compact design, resistance to high pressures and temperatures allow them to effectively solve heat exchange problems both in industry and in domestic systems, namely:
- Brazed plate heat exchanger for refrigeration equipment (evaporator, condenser, chiller);
- Two-circuit boiler (secondary hot water heat exchanger);
- Piped HVAC heat exchangers (heaters for heating systems, domestic hot water, and air conditioning);
- Heat exchangers for alternative energy sources (heat exchangers for heat pumps and solar systems).
- Heat exchangers for metallurgy (cooling oil and cutting fluids, heating and cooling of electroplating solutions).
- Heat exchangers for mechanical engineering (cooling oil and cutting fluids, cooling hydraulic oils).
- Heat exchangers for the brewing industry (Freon evaporator, steam water heater).
- Heat exchangers for utilities (heaters for heating and air conditioning systems).
- Heat exchangers for the non-alcoholic beverage industry (Freon evaporator and condenser).
- Heat exchangers for the dairy industry (Freon evaporator, steam water heater).
- Heat exchangers in the vegetable oil industry (heater, cooler, and heat recuperator in vegetable oil streams).
- Domestic systems. In everyday life, brazed heat exchangers are found in two-circuit boilers, where they are responsible for heating water in the DHW system. Their small size allows the device to be compactly integrated into boilers, and their high efficiency ensures fast heating with minimal energy consumption.
Brazed plate heat exchangers are reliable and efficient equipment used from industrial lines to domestic systems. Their versatility and compactness allow them to be adapted to specific applications, ensuring process stability, resource savings and long service life.
Brazed heat exchangers from the company “Teplo-Polis”
The company “Teplo-Polis” has extensive experience in supplying brazed plate heat exchangers for industrial enterprises of Ukraine. We offer reliable equipment that meets modern requirements of technological processes in various industries.
Our key advantages:
- Supply for a wide range of industries:
- Brazed heat exchangers are used in refrigeration systems as evaporators and flow condensers.
- Steam heaters are in demand at most industrial enterprises of Ukraine.
- Chemical, petrochemical, metallurgical and machine-building industries actively use our equipment due to its reliability.Разнообразие вариантов присоединения:
- We supply heat exchangers with a variety of connection types including:
- Threaded;
- Soldered;
- Flanged.
- High performance parameters:
- Maximum temperature: up to +230 °C.
- Maximum pressure: up to 45 bar.
- These characteristics make our equipment optimized for heavy-duty applications and demanding environments.
- Fully stainless steel construction:
Our company supplies brazed heat exchangers made entirely of stainless steel, using stainless solder. Such heat exchangers:- Characterized by a homogeneous construction, which increases their hygienic properties;
- Resistant to pressure and temperature fluctuations;
- Highly corrosion resistant, which is especially important for the chemical and food industries.
Teplo-Polis offers not only quality equipment, but also flexible solutions adapted to the tasks of a particular enterprise. Reliability, durability and versatility of our heat exchangers are the key reasons why we are trusted by leaders of various industries.
We represent plate brazed heat exchangers from the world’s leading brands
Teplo-Polis offers a wide range of plate brazed heat exchangers from proven global manufacturers. Our products cover models for a variety of applications, from domestic systems to complex industrial processes.
Brands and models supplied:
- ALFA LAVAL: CB14, CB20, AC30, CB26, CB27, CB30, CB52, CD52X, AC70, AC120EQ, CB76, CB77, CB76L, AC130DQ, AC230, CB200, AC250EQ, AC250DQ, and others.
- SWEP: B5, B8, B10, B25, B28, V25, V28, B80, B50, B56, V80, B120, B200, B427, and others.
- DANFOSS: B3-014, B3-020, B3-027, B3-030, B3-052, B3-095, B3-113, B3-210, and others.
- SECESPOL: LA12, LA14, LA22, LA34, LB31, LB47, LB60, LC110, LC170, LD235, LE400, LH40, LJ30M, LM110, RA14, RHA14, RA22, RHA22, RB31, RHB31, RA34, RHA34, RB47, RHB47, RB60, RHB60, RC110, RHC110, LA14SP, LB31SP, LB60SP, LC110SP, and others.
- KAORI: K040, K050, K095, R200, K200, K215, K205, K415, and others.
Teplo-Polis partners with world leaders in the heat exchanger industry to provide customers with the best solutions to meet their requirements and challenges.
Scheme of work with Teplo-Polis
The company “Teplo-Polis” adheres to an individual approach to each client, offering a comprehensive solution to all problems associated with the selection, calculation and operation of brazed plate heat exchangers. We value your time and strive to make cooperation as comfortable and productive as possible. A clear scheme of work allows us to effectively meet the needs of customers, ensuring the reliability of equipment and high quality service.
The main stages of work:
Step 1: Understanding your needs. Customers are our top priority. Before we start work, we listen carefully to all your requirements and the specifics of the process where the brazed plate heat exchanger is to be used. This helps us to develop an optimal solution that fits your needs perfectly.
Step 2: Professional calculation of the brazed plate heat exchanger, taking into account your wishes and experience with brazed plate heat exchangers in similar operating conditions. You receive a technical quotation for the brazed plate heat exchanger, where its characteristics are specified).
Step 3: Quality equipment and materials. For us, quality is the basis of long-term customer relationships. We work only with proven and reliable suppliers. This allows us to provide a warranty on our work and ensure a high level of reliability of the brazed heat exchanger.
Step 4: Quick delivery of the brazed heat exchanger is realized due to availability of sufficient quantity of heat exchangers in stock.
Step 5: Prompt service and support. We are always available to answer your questions and provide prompt support. Regular service and professional care of the equipment ensures its smooth operation over a long period of time.
Cooperation with “Teplo-Polis” is not just the supply of equipment, but comprehensive assistance at all stages of interaction: from needs analysis to technical support after installation. Our main goal is to offer solutions that fully meet your requirements, ensuring high efficiency and reliability of equipment. By choosing Teplo-Polis, you get confidence in the result and a reliable partner for long-term cooperation.
Why choose us
Why choose us, why choose Heat Policy? We have been on the market for over 20 years. Because we combine individual approach and professionalism. The main criteria of our work are promptness of calculations, quality and reliability, as well as respect for your time and convenience. That is why we carry out all works with minimum disturbance for you.
We work transparently and provide detailed information about the cost and progress of the work. Therefore, with Heat – Polis you will get a reliable partnership and a high level of service. We create equipment that is able to solve the set tasks, leaving only the most pleasant impressions from cooperation with us!
How to buy a brazed heat exchanger?
If you are looking for reliable and efficient equipment, you can buy a brazed plate heat exchanger with a quality guarantee and fast delivery from us. To find out the brazed heat exchanger price, just fill out the form on our website or contact our managers by phone.
We provide competent consultations and select equipment that perfectly suits your needs. After receiving your request, Teplo-Polis specialists will promptly calculate the heat exchanger, offering options with minimal cost and a high level of reliability.
By contacting us, you receive favorable conditions, high-quality equipment and professional support at every stage of cooperation.
